在信号源(us,Rs)和电阻RL,之间插入一个理想变压器,如图7-43所示,若电压表和电流表的读数分别为100V和2A,则信号源供出电流的有效值为()A。...

作者: rantiku 人气: - 评论: 0

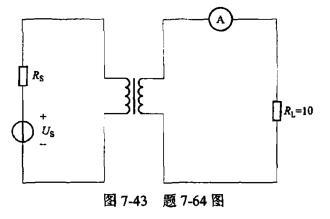

问题 在信号源(us,Rs)和电阻RL,之间插入一个理想变压器,如图7-43所示,若电压表和电流表的读数分别为100V和2A,则信号源供出电流的有效值为()A。
选项 A.0.4 B.10 C. 0.28 D.7.07
答案 A
解析 正确答案是A。 提示:二次电压为20V,则一次绕组匝数为二次侧的5倍,因此一次侧电流为二次侧的0.2倍,即0.4A。
